Cast-resin Bushings Specialities

We offer a wide range of bolt bushings for gas-insulated and oil-insulated switchgears. Learn more.

In addition to the range of standard insulators, GIPRO is specialised manufacturer of customized epoxy insulators and epoxy gis bushings for circuit breakers, fuse housing, delimiters, earth switches, gas-insulated switchgear (GIS) and air-insulated switchgears (AIS), capacitors and transformers.

GIPRO supports you with your epoxy insulator, mv bushing-development as well as development of your customized epoxy housing for mv switchgear from the beginning and offers a various range of testing-equipment starting with electric serial tests, x-ray testing, gas-leakage-testing up to customer-specific individual insulator inspections.

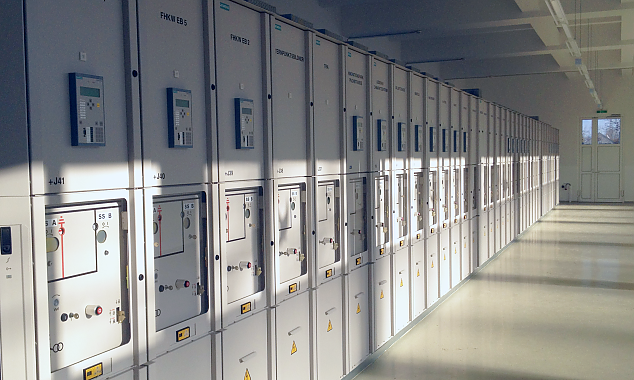

ETM-Mittelspannungs-Isolatoren von GIPRO in einem Schaltwerk integriert

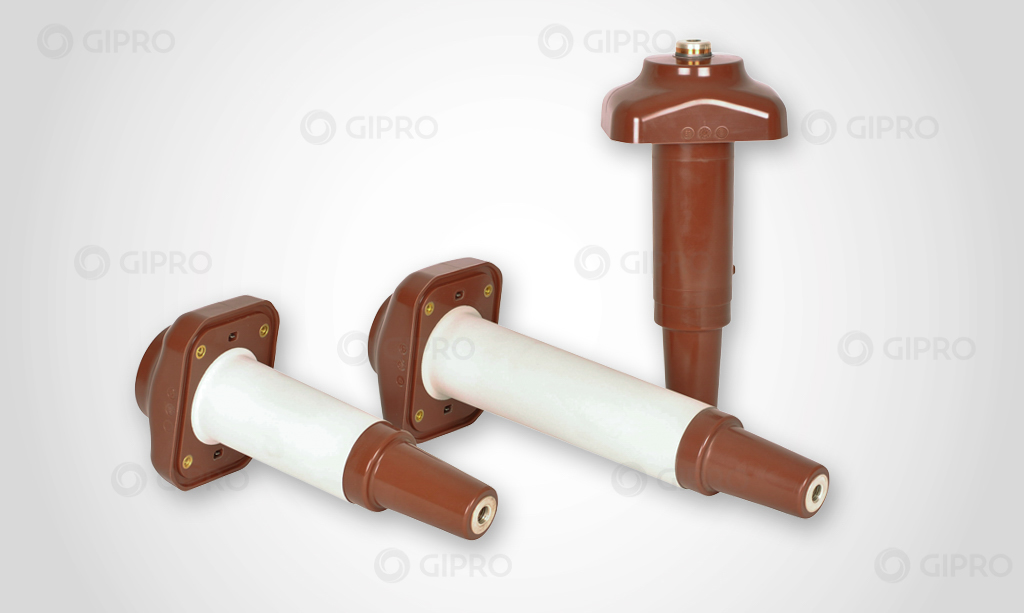

Medium Voltage GIS Bushing C-Cone

Customized mv bushing from epoxy resin for use with transformers up to 40,5kV nominal voltage as insulator for GIS (gas-insulated-switchgear).

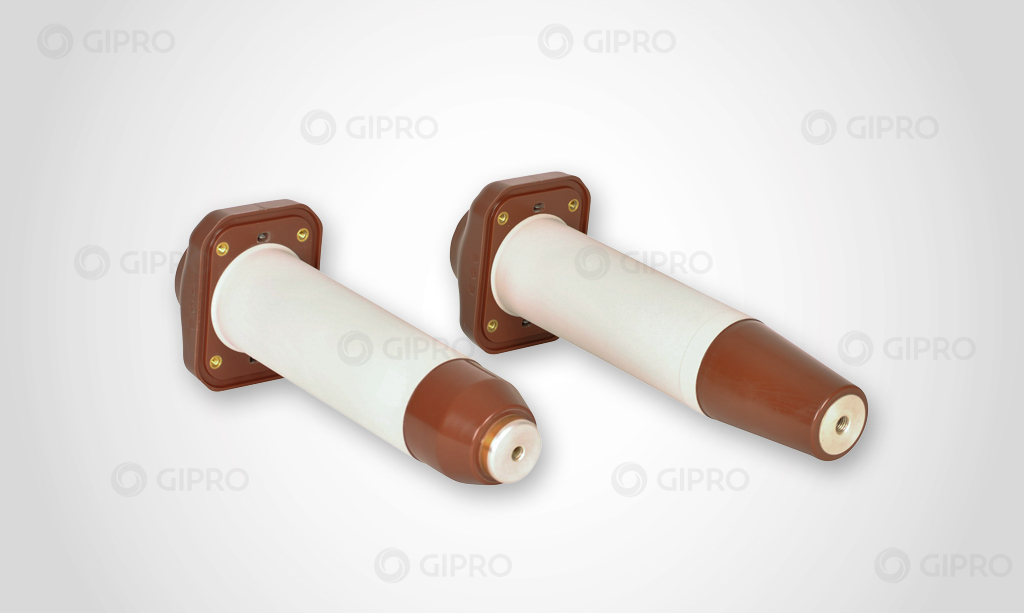

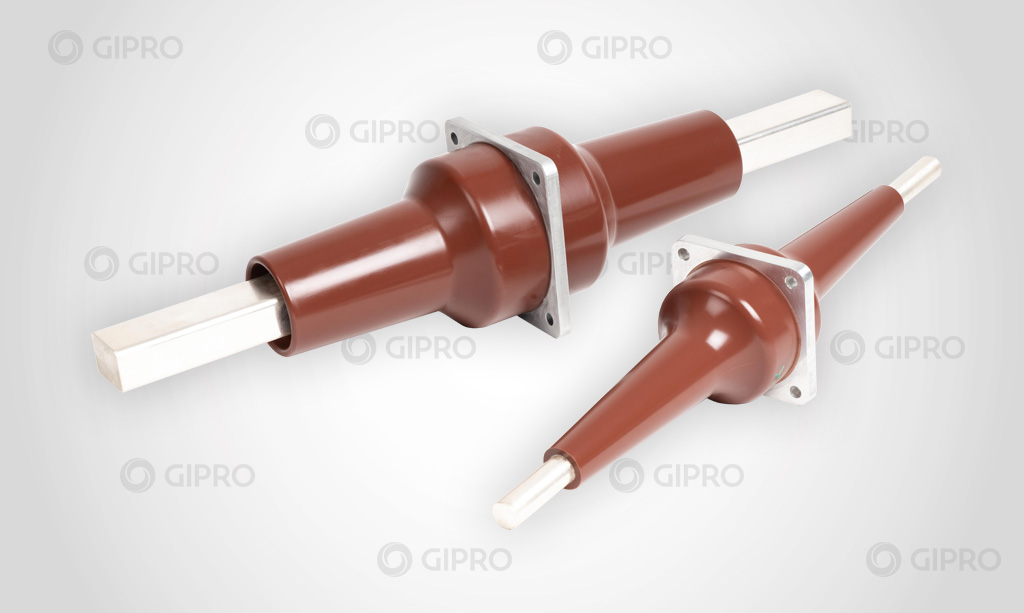

Medium Voltage Cast-resin Bushing

Customized SF6 mv epoxy gis bushing for use with transformers up to 40,5kV nominal voltage

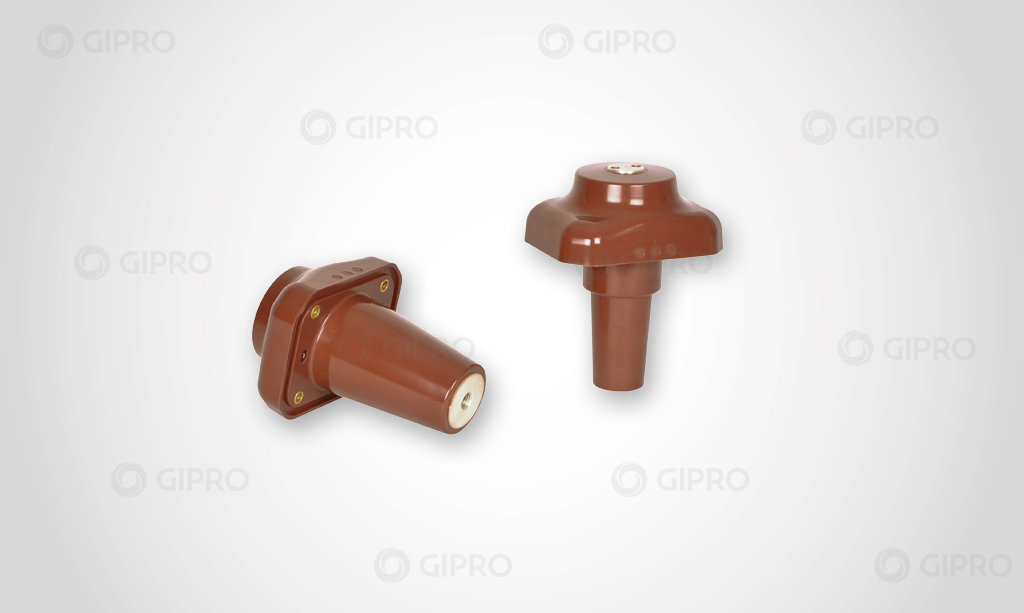

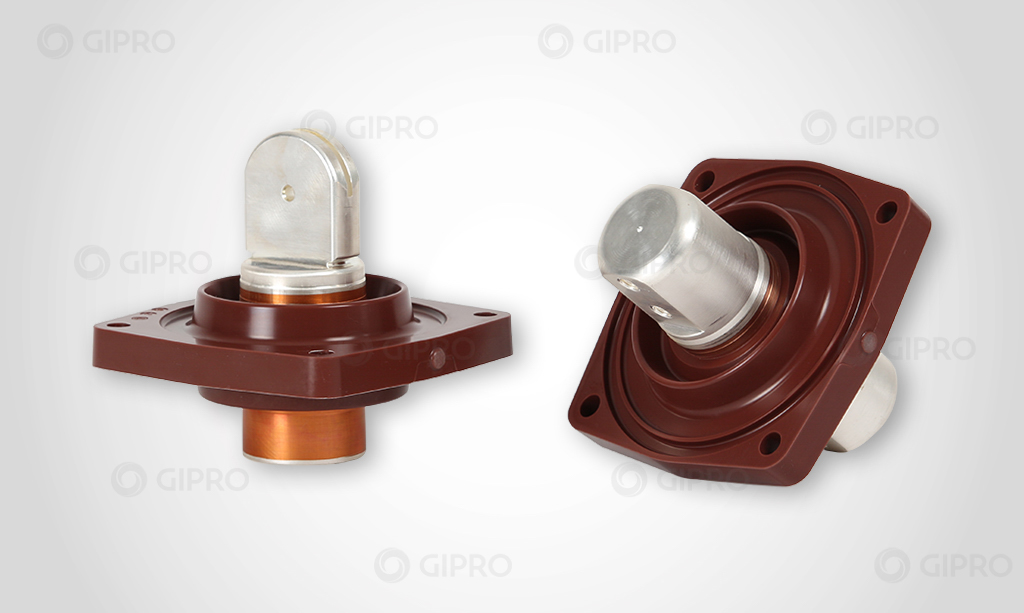

Customized Medium voltage gis bushings

SF6 medium-voltage bushings from epoxy resin for use with transformers up to 40,5kV nominal voltage as insulators for GIS (gas-insulated-switchgear).

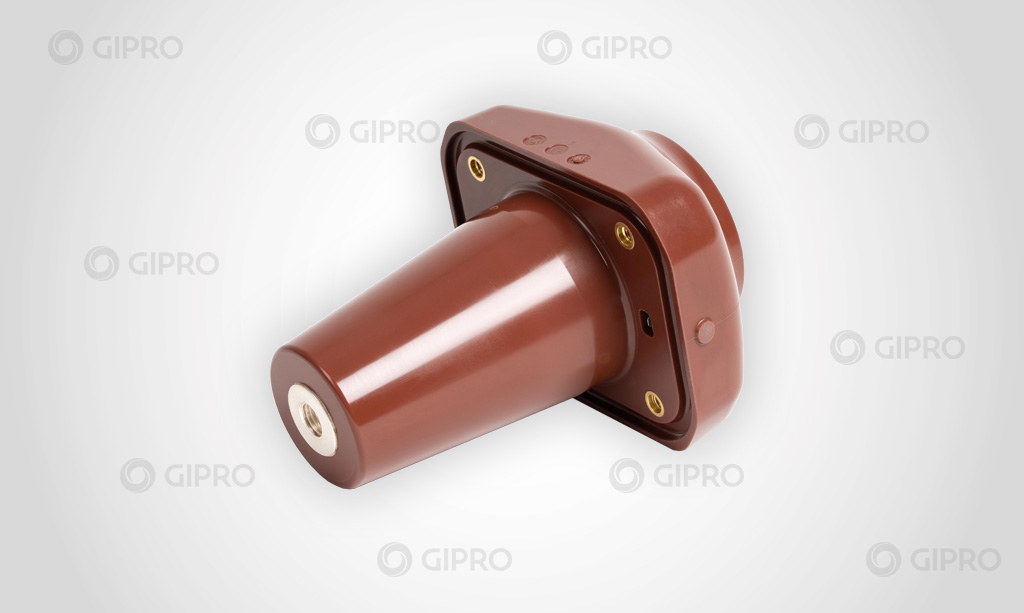

F-Konus Durchführung für 72kV Hochspannungs-Schaltanlage

F-Cone Bushing up to 72kV

Specialized electrical bushing for connection of high voltage cables to a 72kV switchgear-system. Bushing made from epoxy resin with F-Cone. Gas-tight and electrically tested up to 150kV.

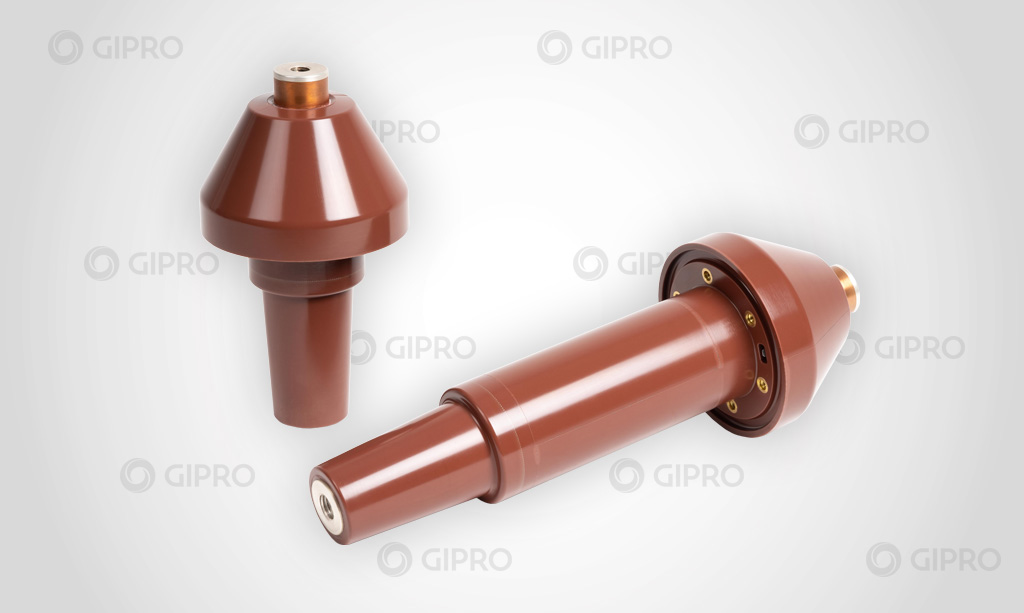

Neue Bolzen Durchführungen für Mittelspannungs-Schaltanlage

C-Cone Bushing Medium Voltage

Taylor-made cast-resin medium voltage bushings with C-Cones according IEC 50181 for encapsulated switch-gear systems. Gas-tight and electrically tested up to 95kV.
